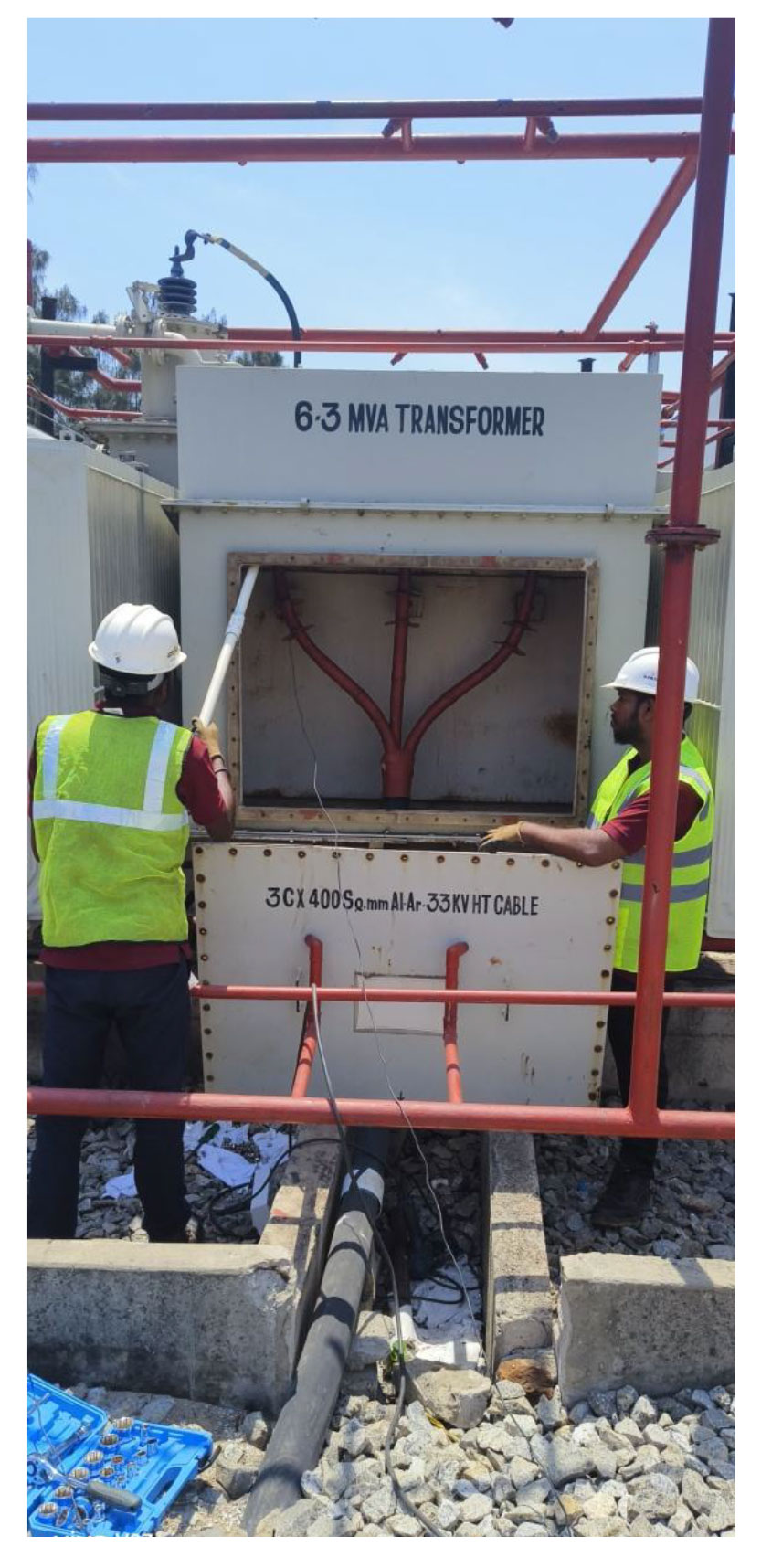

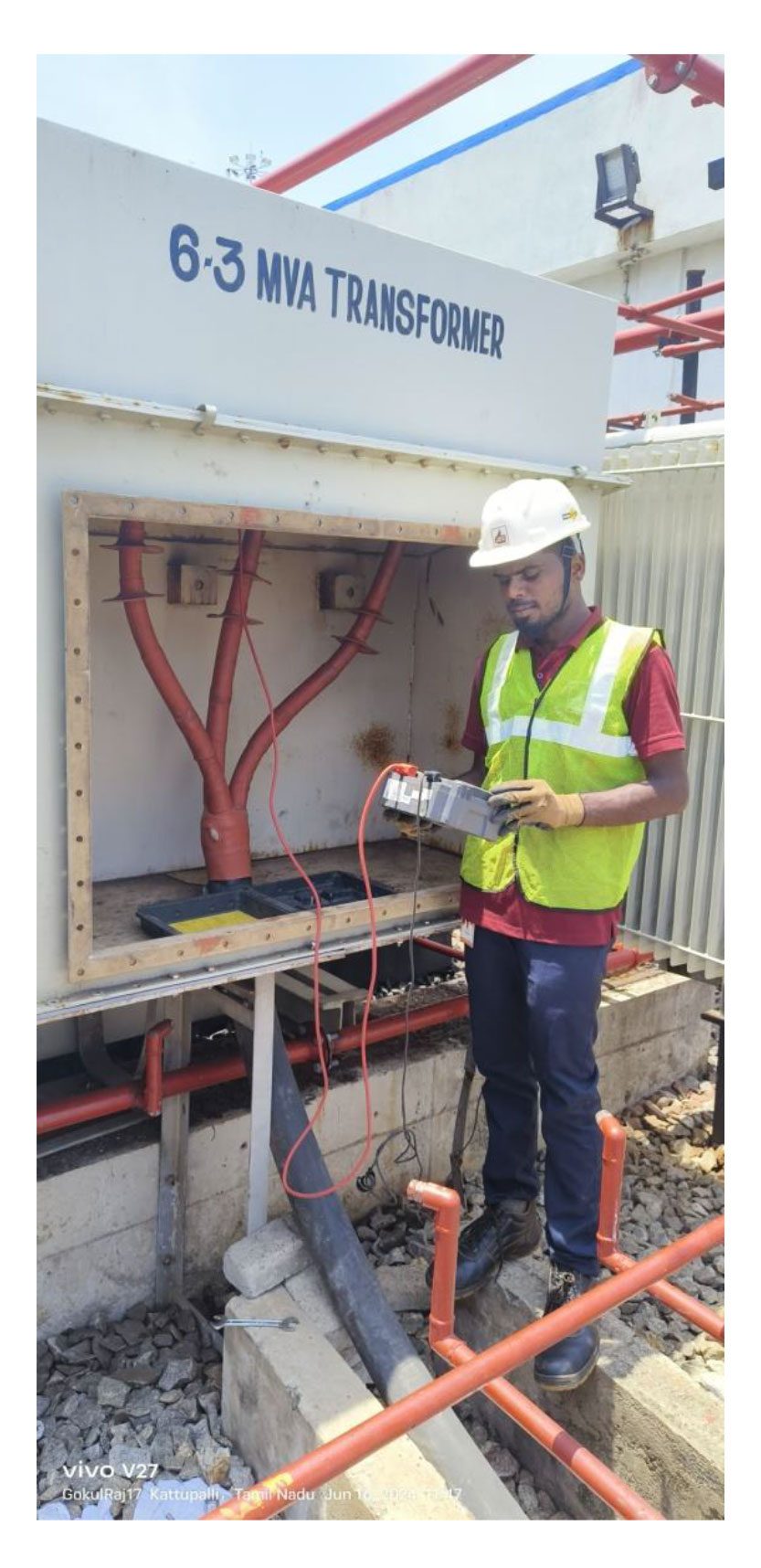

RANSFORMER TESTING

Transformer plays a major role in power generation, transformation, distribution and utilization of electrical systems. So, it should be regularly maintained yearly once is most important. These are crucial for ensuring that the transformers meet all necessary standards and specifications to achieve the reliable performance. They also ensure the quality, safety and durability of the transformers in their operational environments.

BENEFITS OF TRANSFORMER TESTING:

  • To check if the main parts/components of electrical transformers are working correctly.
  • To check the functioning of the whole transformer
  • To reduce the risk of failure of working.
  • To confirm the specifications and performance of the transformer.
  • To avoid future failure risks that happen because of electrical, thermal, or mechanical issues.

Our scope of work

  • IR Test with PI Value
  • Ratio Test
  • Magnetic core balance Test
  • Magnetizing current Test
  • Vector Group Test
  • Winding Resistance Test

Other tests

  • No- load test and full load test
  • Partial discharge test
  • Dielectric loss (tan delta) test
  • Impulse voltage test
Jayam Engineering Services

List of Testing Kits and Equipment’s

Primary Injection Kit.

Secondary Injection Kit (Single phase & 3 Phase)

Contact Resistance Meter - CRM 100B make Scope.

Time Interval Meter – SCOT MXP make Scope.

SF6 Gas Leakage Detector make DILO 3-033-R002.

Transformer oil filtration machine up to 6KL

SF6 Gas Cylinder With filling kit.

Digital Insulation Resistance Tester (250V to 5000V Dc) .

Analog Insulation Resistance Tester (500V,1000V,5000V) .

Earth Resistance Tester (Analog and Digital).

Digital Multi Meter (fluke make).

Phase Sequence Indicator.

Digital Clamp Meter (kyoritsu make).

Digital Leakage Meter (kyoritsu make).

High voltage Test Kit (0- 80KV AC/DC).

Transformer winding Resistance meter (Scope Make).

Transformer Testing Kit.

Vacuum pump

Micro Ohm Meter.

L&T Universal Test Kit.

ACB Release Test Kit (ABB & Siemens).

Thermal Scanner (Fluke Make).

Power Quality Analyser.

Cable Fault Locator kit
